C-RED 2 Extended Range


ESWIR HIGH SPEED LOW NOISE INGAAS CAMERA


C-RED 2 ER 1.9µm and 2.2µm are ultra fast extended InGaAs cameras for eSWIR imaging, which integrate a 640 x 512 InGaAs PIN Photodiode detector with 15µm pixel pitch for high resolution.


They are complementary to C-RED 2 in terms of sensitivity, as they cover the high end of the SWIR spectrum.


C-RED 2 ER 1.9 µm & 2.2 µm allow to go deeper in the infrared and open new imaging and sensing opportunities for life science, defense, laser measurements, and industrial applications.


Available in 2 versions:

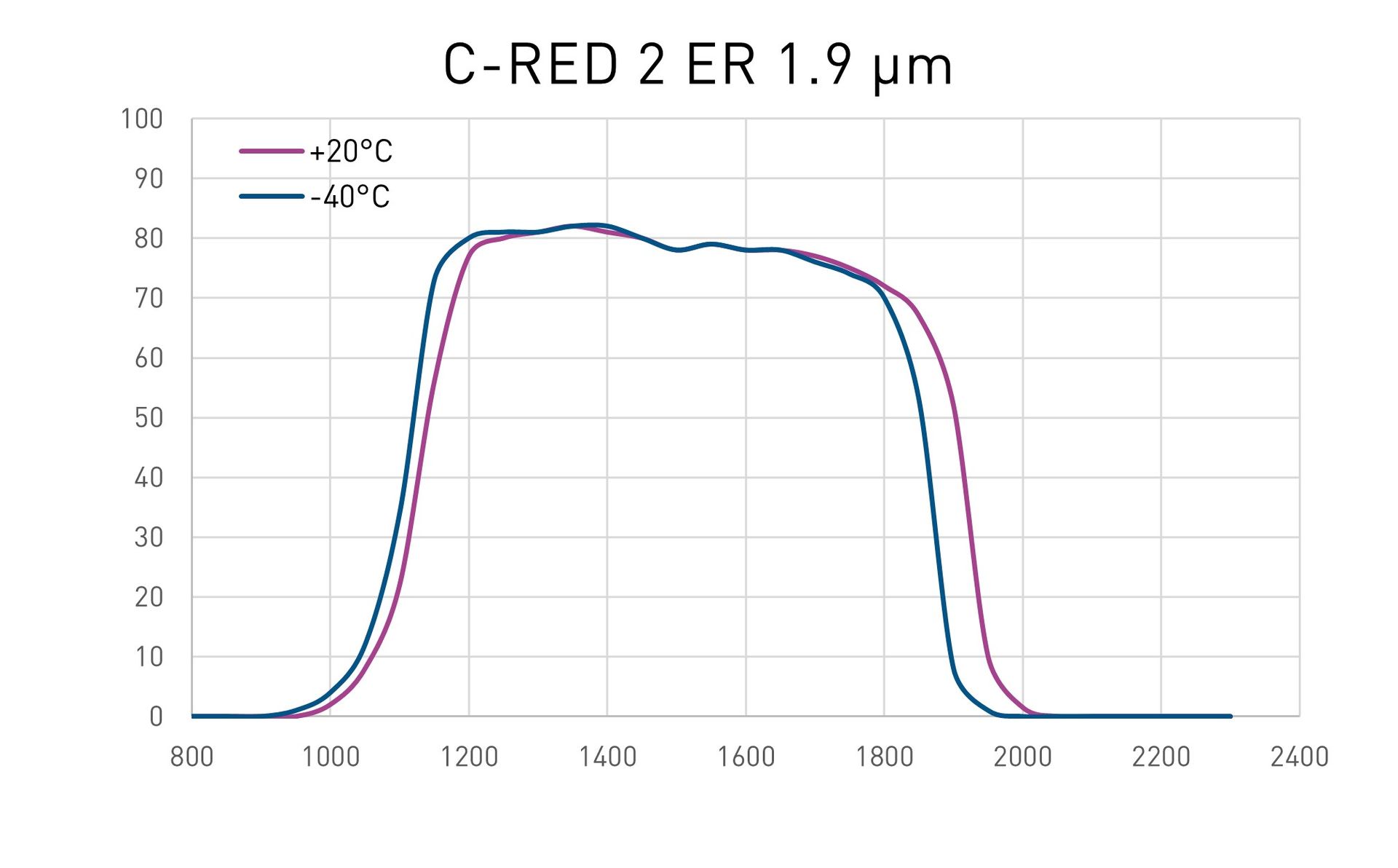

C-RED 2 ER 1.9µm
C-RED 2 ER 2.2µm


APPLICATIONS


  • ASTRONOMY
  • LIFE SCIENCES / RESEARCH
  • INDUSTRY
  • SURVEILLANCE / SAFETY


Datasheet

FEATURES

  • up to 600 FPS full frame
  • Available in 2 versions :
  • 1.1 to 1.9 µm
  • 1.3 to 2.2 µm
  • <50 electrons readout noise
  • 640 x 512 InGaAs sensor
  • Windowing
  • Electronic shutter <5 μs
  • Non uniformity correction
  • Cooling Air or Liquid (Ambiant)
  • Interface: superspeed USB-3 or CameraLink®
  • C-Mount
  • SWaP: L 140 mm x W 75 mm x H 55 mm
  • Weight: 0.9Kg, up to 90W
  • Optional : mouting plate
