EOIR UAV camera

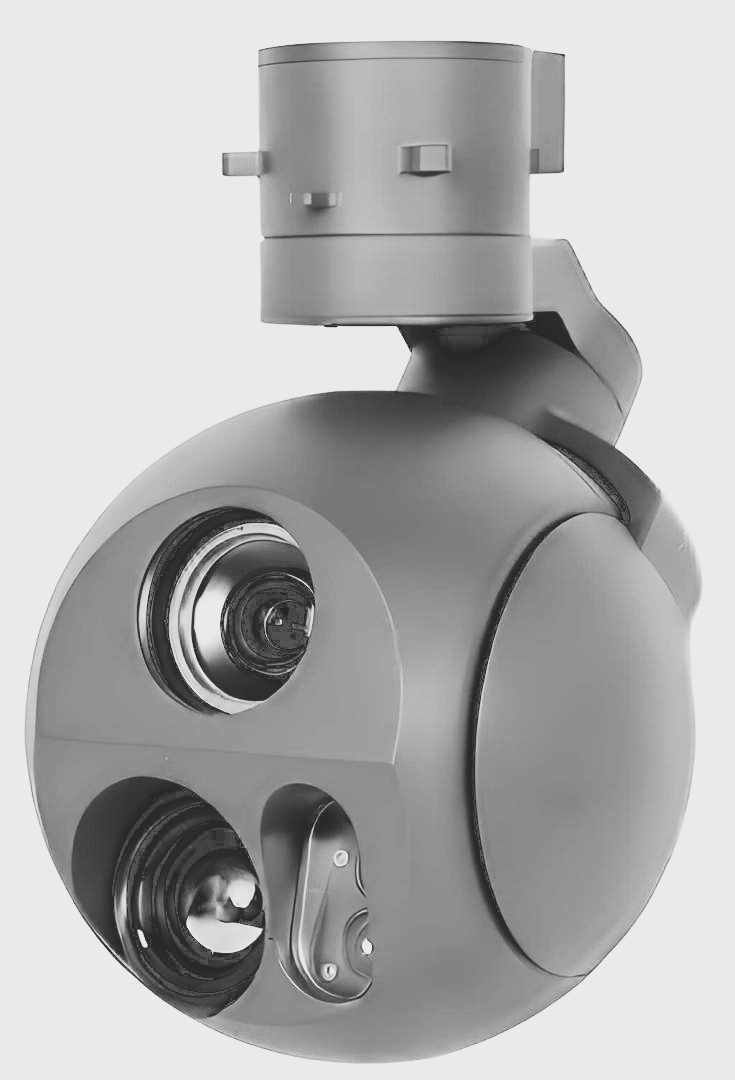

HTS130CT-03
HTS130CT-03 is a EOIR camera with gimbal support. It is used in fixed-wing, rotor-wing, and unmanned platforms (AV and Drone) for Search and Research, Farming, Intelligence, Surveillance, and Reconnaissance (ISR), etc. Included sensors are Visible camera with 30x zoom optics, LWIR (uncooled) and a Range Finder. The gimbal support has 3-axis servo for remote pan-tilt operation and tracking.
Specfications
Visible Camera
- Wavelength 0.4μm~0.9μm
- Resolution: 1920×1080
- Focal Length: 4.3mm~129mm(30X)
LWIR(Un-Cooled) Camera
- Wavelength: 8μm~14μm
- Resolution: 640×512
- Pixel: 12um
- NETD: 50mk
- Focul length: 25mm/F1.0
Laser Rangefinder
- Wavelength: 905nm
- Ranging distance: 5m~2000m
- Ranging accuracy: ±2m
Servo System
- Rotation limits: 360° continuous Pan
- Pitch: -120°~+30°
- Rolling: -40°~+40°
- Stabilization accuracy: ≤200μrad
- (2°/1Hz,1°/2Hz swing)
- Max.angular speed: ≥50°/s
- Max.angular acceleration: ≥90°/s2
General
- Size: ≤Φ130mm×194mm
- Weight: ≤1.24kg
- Voltage: 12V
- Power consumption(Average ): ≤15W
- Power consumption(Peak ): ≤30W
- Working temperature: -20°C~+60°C
Tracking Functions
- Motion speed: 30pixel/frame
- Target imaging contrast: 8%
- Target imaging pixel (Mini): 4x3 pixels
- Supports separate video streams output of dual cameras (visible,IR)
Interface
- Communication: 1×RS422/RS232(TTL opt)
- Video: Ethernet
