EOIR UAV camera

HYTEC EOIR

Reconnaissance, Surveillance and Intelligence

EOIR cameras for Unmanned, Airborne, Maritime platform


  • Compact, lightweight, gyro-stabilized, multi-spectral imaging system
  • Designed for integration into smaller fixed-wing, rotor-wing, and unmanned platforms
  • Image clarity, and advanced perceptual aids for optimal situational awareness and decision-making
  • Can be equipped with multiple laser options
  • A powerful 50x continuous zoom lens for visible camera
  • Can be equipped with LWIR, MWIR or SWIR cameras for low light operation



HYTEC Model HTS130CT-03

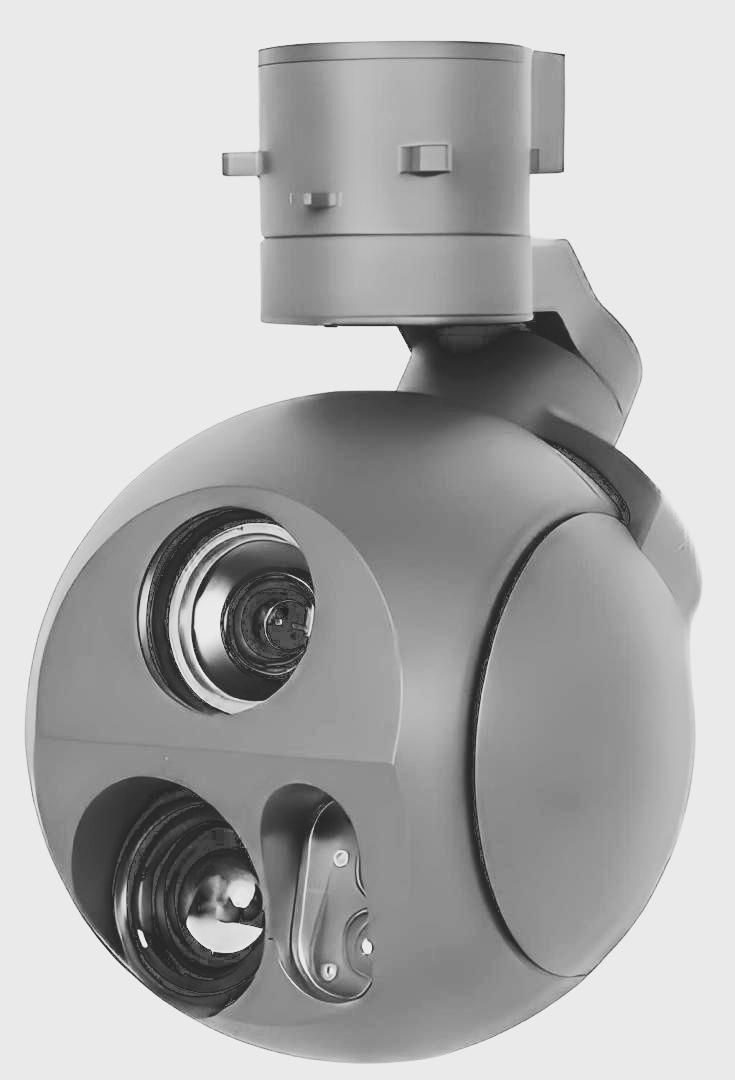

HTS130CT-03 is a EOIR camera with gimbal support. It is used in fixed-wing, rotor-wing, and unmanned platforms (AV and Drone) for Search and Research, Farming, Intelligence, Surveillance, and Reconnaissance (ISR), etc. Included sensors are Visible camera with 30x zoom optics, LWIR (uncooled) and a Range Finder. The gimbal support has 3-axis servo for remote pan-tilt operation and tracking.


DATASHEET


CONTACT US

Specfications

Visible Camera

  • Wavelength 0.4μm~0.9μm
  • Resolution: 1920×1080
  • Focal Length: 4.3mm~129mm(30X)

LWIR(Un-Cooled) Camera

  • Wavelength: 8μm~14μm
  • Resolution: 640×512
  • Pixel: 12um
  • NETD: 50mk
  • Focul length: 25mm/F1.0

Laser Rangefinder

  • Wavelength: 905nm
  • Ranging distance: 5m~2000m
  • Ranging accuracy: ±2m

Servo System

  • Rotation limits: 360° continuous Pan
  • Pitch: -120°~+30°
  • Rolling: -40°~+40°
  • Stabilization accuracy: ≤200μrad
  • (2°/1Hz,1°/2Hz swing)
  • Max.angular speed: ≥50°/s
  • Max.angular acceleration: ≥90°/s2

General

  • Size: ≤Φ130mm×194mm
  • Weight: ≤1.24kg
  • Voltage: 12V
  • Power consumption(Average ): ≤15W
  • Power consumption(Peak ): ≤30W
  • Working temperature: -20°C~+60°C

Tracking Functions

  • Motion speed: 30pixel/frame
  • Target imaging contrast: 8%
  • Target imaging pixel (Mini): 4x3 pixels
  • Supports separate video streams output of dual cameras (visible,IR)

Interface

  • Communication: 1×RS422/RS232(TTL opt)
  • Video: Ethernet
