AUTOMOTIVE
High Speed Video Cameras for Automotive Applications
AIRBAG TESTING
IT IS IMPOSSIBLE FOR HUMAN EYES TO SEE AND ANALYZE THE AIRBAG FORMATION
The total process from deployment to inflation is approximately 0.04 seconds, it is impossible for an engineer to analyze and study the formation and troubleshooting the issue without a high speed camera.
Test includes static deployment system (DAB,PAB,SAB,CAB)

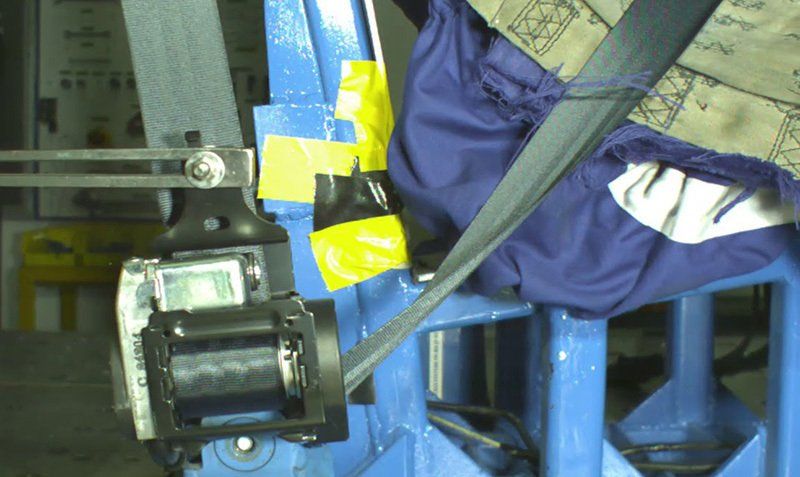

SEATBELT DYNAMIC TEST
HIGH SPEED RECORDING IS REQUIRED TO ANALYZE RESPONSE TIME DURING COLLISION
Highspeed camera being used to record various phenomena including dummies reaction and seatbelt behavior during collision response time.
PICK AND PLACE
DURING PICK&PLACE PROCESS OFTEN ISSUE UNDETECTABLE DURING HIGH SPEED
Very high speed SMT pick process is checked using highspeed camera
Popular High Speed Cameras for this Application
IX i-Speed 5
Often Used Frame Rates
5000 - 100,000
Max Resolution at FPS
1920 x 1080 @ 6382fps
Max Frame Rate
1,000,000fps
AOS M-PRI
Often Used Frame Rates
1000 - 10,000
Max Resolution at FPS
1280 x 800 @ 4000fps
Max Frame Rate
83,000fps
FASTEC HS-7
Often Used Frame Rates
2500 - 10,000
Max Resolution at FPS
1920 x 1080 @ 2500fps
Max Frame Rate
12,000fps
